Geel veiligheidsbout ketenen 12 ton WLL Heavy Duty Rigging Solution

Basic Properties
Place of Origin: China
Brand Name: Anfeng
Certification: CE, ISO9001, DNV
Model Number: JBB-12
Trading Properties
Minimum Order Quantity: 500 stuks
Price: 10-1000000
Payment Terms: T/T, L/C,
Supply Ability: 10000000
Product Summary
Product Description: Premium Anchor & Bow Shackles for Industrial Lifting Anfeng's Yellow Safety Bolt Type Shackle (WLL 12 Tonne) is a high-performance rigging accessory designed for heavy-duty lifting, marine, construction, and industrial applications. Featuring a hot-dip galvanized finish and alloy steel construction, this shackle provides superior strength, corrosion resistance, and safety compliance with ASME B30.26-2004 & RR-C-271D standards. Key Features & Benefits ✔ 12

Product Details

Markeren:

12 Tonne Bolt Gordels

,

Zware boutenboeien

,

Vastlegging oplossingen Bolt boeien

Safety Features: Veiligheidsbout voor dubbele veiligheid, voorkomt het per ongeluk losschroeven van de pin
Location: Gevestigd in Shanghai Free Trade Zone
Material: Hoogwaardige ketenboogen en -pinnen van koolstofstaal
Design: Ronde "O"-vormige boog voor zijbelasting en meerdere verbindingen met een slingbeen
Manufacturer: Anfeng Lifting & Rigging Ltd.
Sizes Available: Van 1-1/4 inch tot 5 inch nominale grootte
Load Capacity: Proof load is 2 keer de werklastgrens, minimale breeklast is 6 keer de werklastgrens

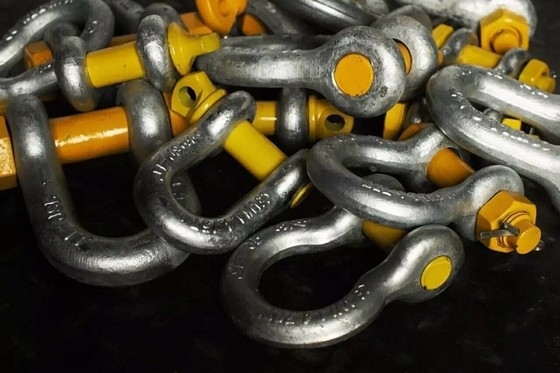

Product Name: Geel veiligheidsbout type boei WLL 12 ton Anker boog boei
Product Description

Productbeschrijving:

Premium Anker & Bow Chain voor industrieel tillen

Anfeng's Yellow Safety Bolt Type Shackle (WLL 12 Tonne) is een hoogwaardig rigging accessoire dat is ontworpen voor zwaar hefwerk, maritieme, bouw en industriële toepassingen.met een oppervlakte van niet meer dan 600 mm, deze boeien bieden een superieure sterkte, corrosiebestendigheid en veiligheidsconformiteit met ASME B30.26-2004 & RR-C-271D-normen.

Belangrijkste kenmerken en voordelen

✔ 12 Tonne werklastgrens (WLL) ️ Ondersteunt extreme hefvermogen met een veiligheidsfactor van 6:1 (min. breeklast = 72 ton).
✔ Veiligheidsboutontwerp ️ Vermijdt het per ongeluk losschroeven van de pen, zodat de lading veilig kan worden behandeld.
✔ Gegalvaniseerde afwerking Roestvast coating voor langdurige duurzaamheid in ruwe omgevingen.
✔ Veelzijdig Gebruik Compatibel met draadtouwhangers, ketens, webbinghangers en meerpootriggingsystemen.
✔ Verwisselbare boog- en ankerboeien
✔ Gecertificeerde kwaliteit CE, ISO9001, DNV gecertificeerd voor gegarandeerde betrouwbaarheid.


Technische specificaties

Parameter Detail
Modelnummer JBB-12
Type Anker/boogketen
Materiaal Hoogwaardige koolstofstaal boog + legering staal pin
Afmaken. Warm gegalvaniseerd
Veiligheidskenmerken Vergrendeling van de veiligheidsbout
WLL (beperkte werkdruk) 12 ton
Proefbelasting 24 ton (2x WLL)
Min. Breekbelasting 72 ton (6x WLL)
Normen ASME B30.26-2004, RR-C-271D
Groottebereik 1-1/4" tot 5" nominale
Gewichtsgebied 0.22 kg 318 kg
Certificeringen CE, ISO9001, DNV

Toepassingen

✅ Liften van zware machines ️ Beveiliging van kranen, graafmachines en industriële apparatuur.
✅ Maritieme en offshore rigging ️ Weerbaar tegen zoutwatercorrosie.
✅ Bouw & Infrastructuur ️ Ondersteunt steigeringen, balken en kabelsystemen.
Transport en logistiek zorgt voor veilige vrachtbeveiliging voor vrachtwagens en schepen.
✅ Operaties in mijnbouw en olievelden


Waarom Anfeng's gele veiligheidsbouten?
